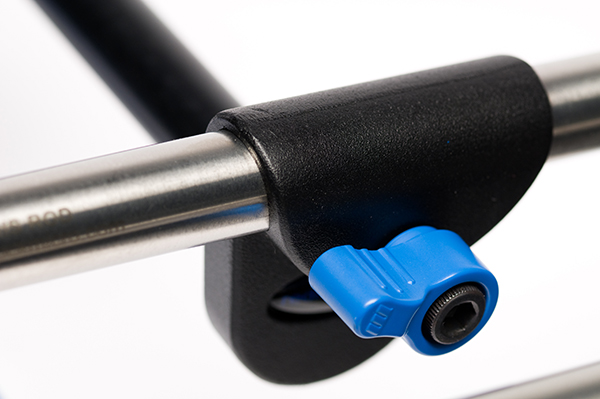

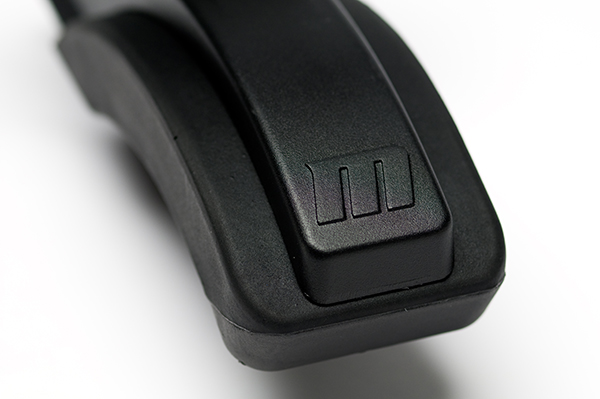

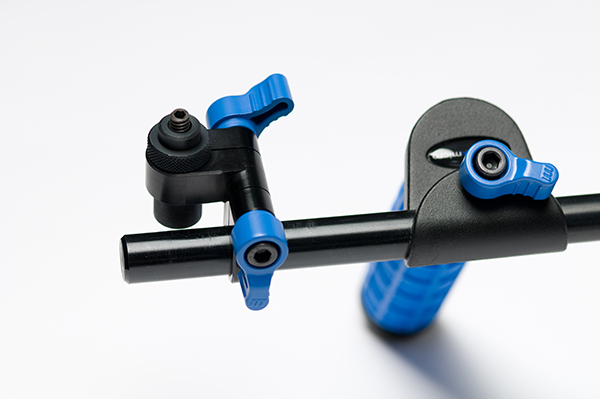

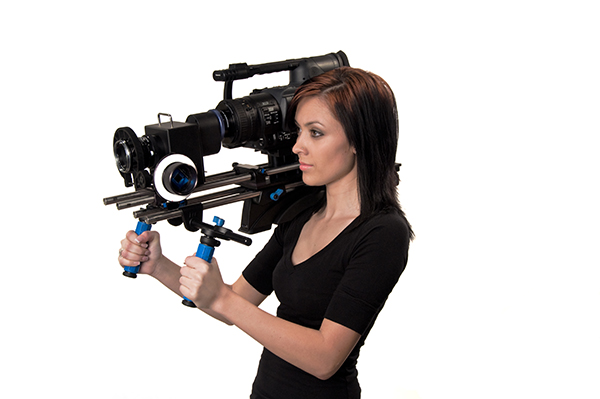

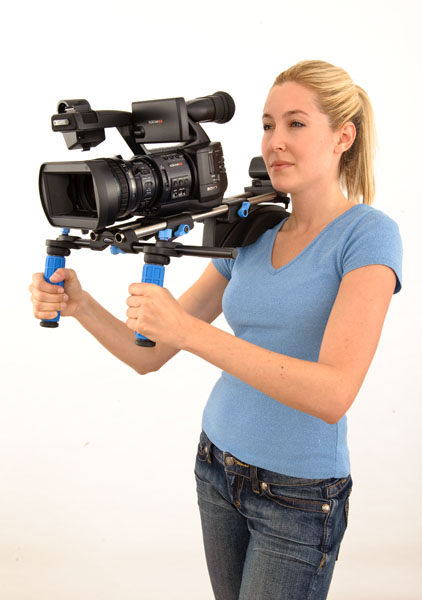

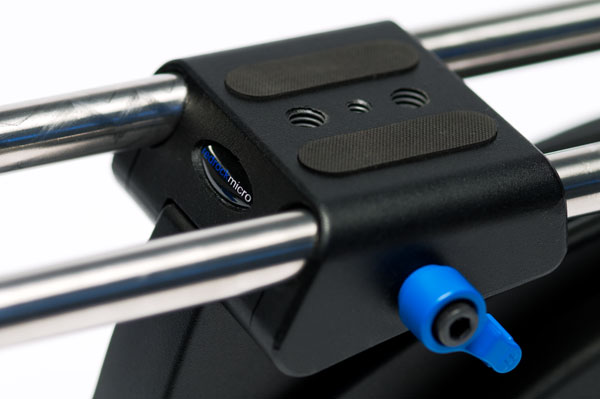

The microShoulderMount Deluxe Bundle with included 15mm 18" rods and extra rod clamp for mounting the camera separately	The rod clamp can be adjusted along the rods and provides sturdy connectivity to your camera.	The microShoulderMount molded shoulderpad is rubberized and padded for comfort and durability	The optional microMount connector shown on the longer handgrip arm, a convenient point to mount your on-camera monitor or other device
click images for larger versions

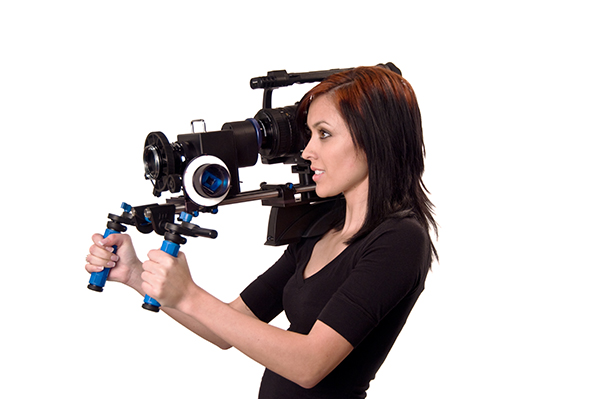

The Redrock microShoulderMount is the perfect solution for an affordable, high quality run-and-gun style rig. Whether you have a 35mm lens adapter, ENG-style video camera, or a small format video camera, the microShoulderMount can deliver the support and comfort you need for handheld shooting.

New standard in price/performance for shoulder supports

The microShoulderMount delivers a high quality, cinema-grade shoulder mount at a fraction of the price of similar solutions. The standard bundle includes not only the handgrips and shoulderpad, but also offers extension rods for the handgrips, removable rod clamp, and an optional microMount connector for attaching your on-camera monitor or other accessory in a convenient place on your rig.

Ultra configurable

Virtually every element of the microShoulderMount can be adjusted to align and balance it for your rig. Almost all adjustments are made using thumbscrews, and can be further tightened with wrenches for added confidence.

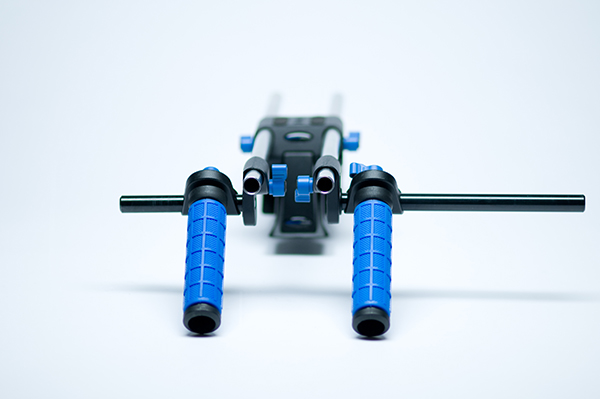

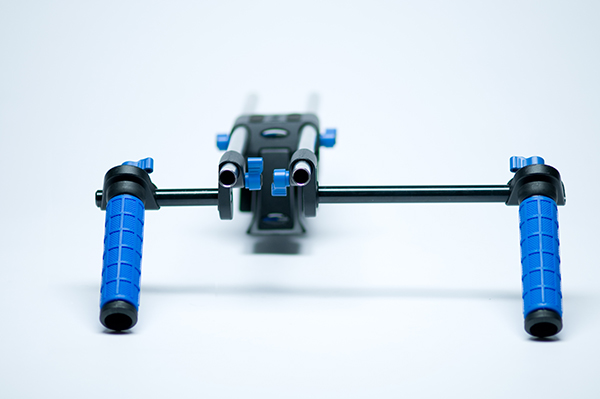

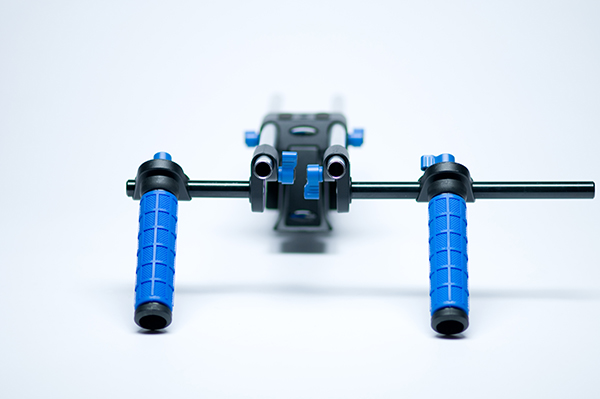

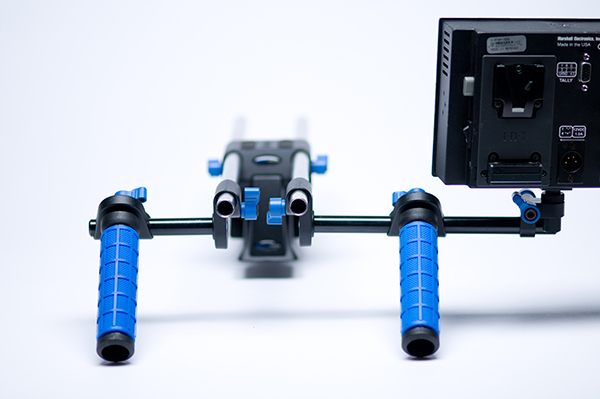

Narrow handgrip configuration	Medium handgrip configuration	Medium handgrip configuration shown with on-camera monitor attached using a microMount connector	Wide handgrip configuration
click images for larger versions

The microShoulderMount has a unique shoulder pad that can be separate from its rod clamp for mounting beneath an existing rod plate (a common configuration for 35mm adapter setups). The hand grips, camera, and shoulderpad can all be adjusted to fit your body and shooting style.

Adaptable to a wide range of cameras and shooting styles

The microShoulderMount can be adapted to just about any style of shooting or camera.

• The handgrips and shoulderpad can be integrated onto your existing 15mm rod system for a compact setup.
• For maximum flexibility, the optional microShoulderMount can be run on a separate set of rods beneath your rig for quick attachment or removal of the shouldermount support.
• For ENG style cameras with an integrated shoulderpad, the handlebar, grips, and rod clamp can be attached directly to the camera while using the camera's own shoulder pad.
• For setups requiring precise balancing, the rod clamp can be separated from the shoulder pad, so the camera and shoulderpad can be moved independently on the rods.

The microShoulderMount is not a replacement for a baseplate system (such as a microSupport baseplate required for the microMatteBox) but is compatible with and configurable to an existing baseplate incorporate the microShoulderMount support system.

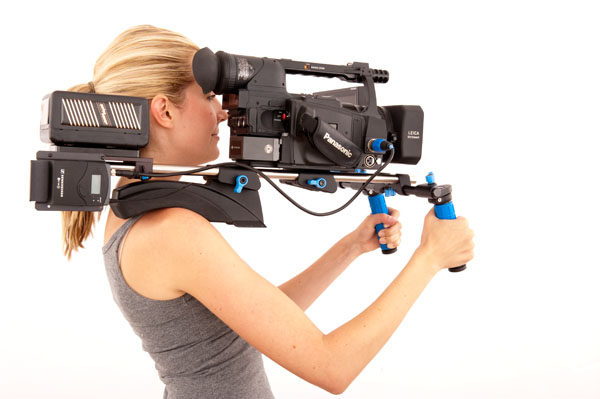

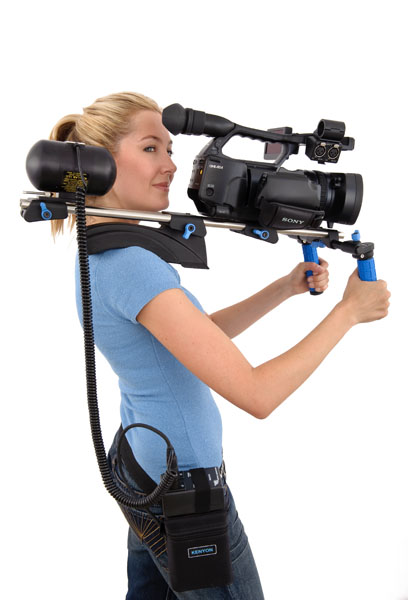

The microShoulderMount standard bundle can be used with your existing rods and M2 setup microShoulderMount with microPowerPod showing anton bauer battery and accessory plate with wireless mic receiver	compact and lightweight yet sturdy and stable	the microShoulderMount can also be used with gyros such as kenyon labbs (shown here connected with an additional rod clamp)	lightweight compact design

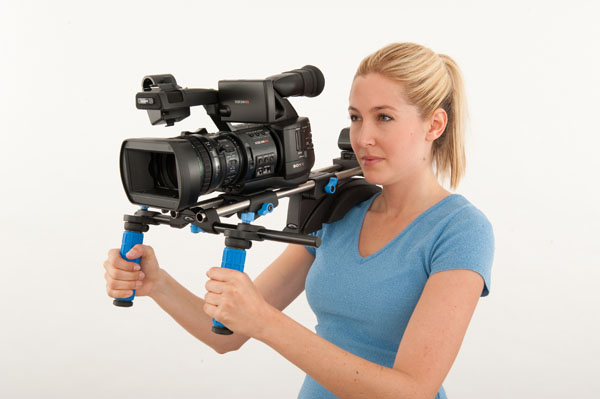

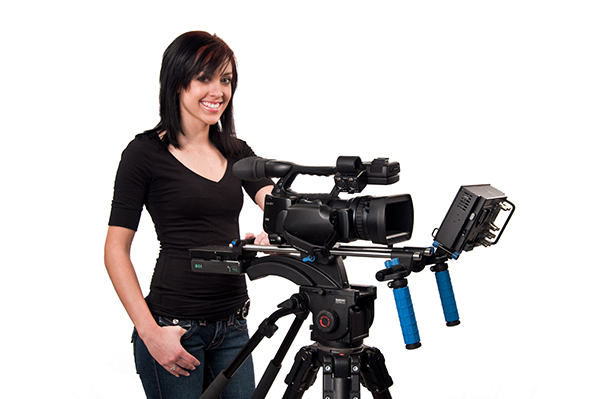

The microShoulderMount standard bundle can be used with your existing rods and M2 setup	Shown with the optional microPod accessory for mounting an external battery and for counterbalance	Use components of the microShoudlerMount kit for smaller setups, such as this ENG style rig with a single hand grip	The integrated dovetail plate of the microShoulderMount allows you to easily attach it to a tripod for fast, safe
click images for larger versions

Expandable with other Redrock accessories

You can enhance the microShoulderMount with other Redrock accessories. You can personalize your rig now to exactly meet your needs, or grow your rig as your needs and camera configurations change.

• Add the microPod/PowerPod for additional counterbalance for your hand-held rig, to attach larger batteries, and for more mounting options for other on-camera accessories
• Add the microMatteBox for controlling light and flare (requires microSupport baseplate)
• Add microMount connectors and additional rods for creating even more tailored solutions
• Add microBalance weights for economical weighted counterbalance (available June 09)

Redrock microShoulderMount Features**

• Rubberized handgrips and padded shoulder mount for maximum comfort
• Removable rod clamp allows shoulder pad to be positioned separately from camera for additional balancing options
• standard 15mm lightweight (60mm center to center) rod configuration
• Optional microMount connector with 1/4" 20 male/female tap can be used to mount on-camera LCD monitor, articulating arm, or other accessories. The microMount can also be positioned on any 15mm rod anywhere on your rig for added flexibility
• Machined aluminum and stainless steel construction for maximum durability and rigidity

Redrock microShoulderMount Benefits

• Padding, rubberized grips, and full adjustments for maximum comfort and stability
• Configurable components can be assembled to exactly meet your needs
• Expandable with other Redrock gear allows you to grow your rig as your needs or camera changes

Redrock microShoulderMount Product Configurations

Please note: as of November 2008 the microMount is available as an optional add-on

35mm Adapter Bundle

• Two adjustable handgrips
• Adjustable handlebar with 4" and 8" handlebar rods
• Shoulder pad with integrated dovetail for tripod mounting (integrated dovetail is bogen 3272 compatible. other quick release plates can be mounted on bottom of shoulderpad via 1/4" or 3/8" mounting holes)
• Adjustable rod clamp
• Does not include 15mm rods (Ideal for camera setups that aready have a baseplate and 15mm rods)
• Weight: 3lb 2 oz

Deluxe Bundle

• Includes everything in the microShoulderMount for 35mm Adapters Bundle PLUS:
• Second rod clamp to mount and move camera separately from shoulder mount
• 15mm 18" stainless steel microRods
• Weight: 4lb 11 oz

microShoulderMount Product Bundle Comparison

** the microShoulderMountBundle for 35mm adapters can work with stock video cameras having an existing baseplate. Otherwise we recommend the microShoulderMount Deluxe Bundle.

Optional accessories

• microMount connectors
• 24" stainless steel rods
• microPod/ microPowerPod accessory plate and battery mount (also good for counterweight)
• microBalance counterbalance weights

** specifications, pricing, and details subject to change without notice.
